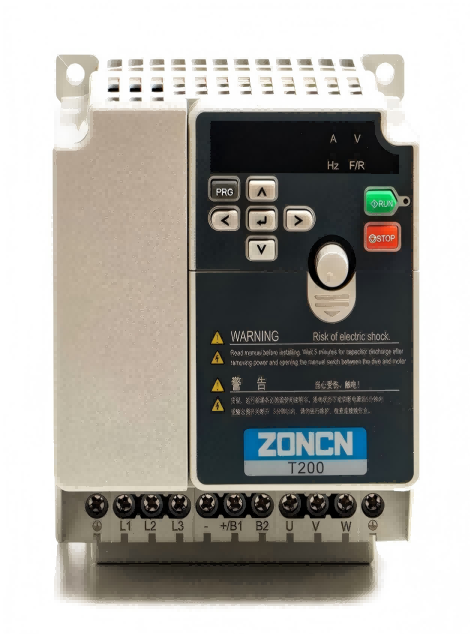

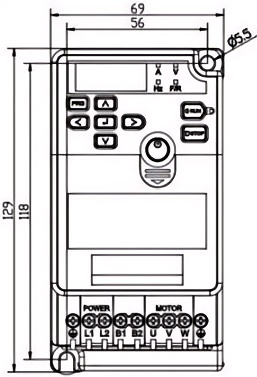

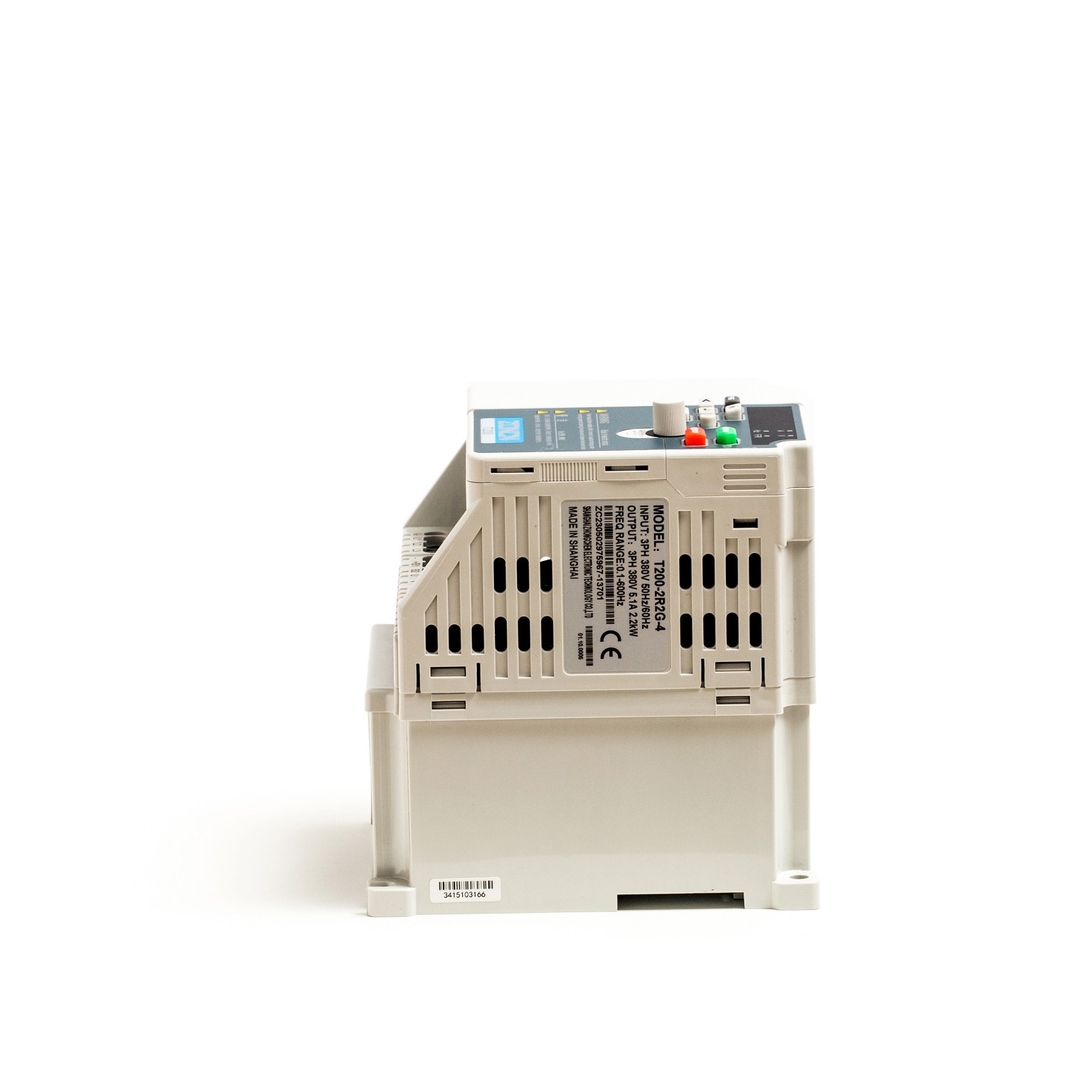

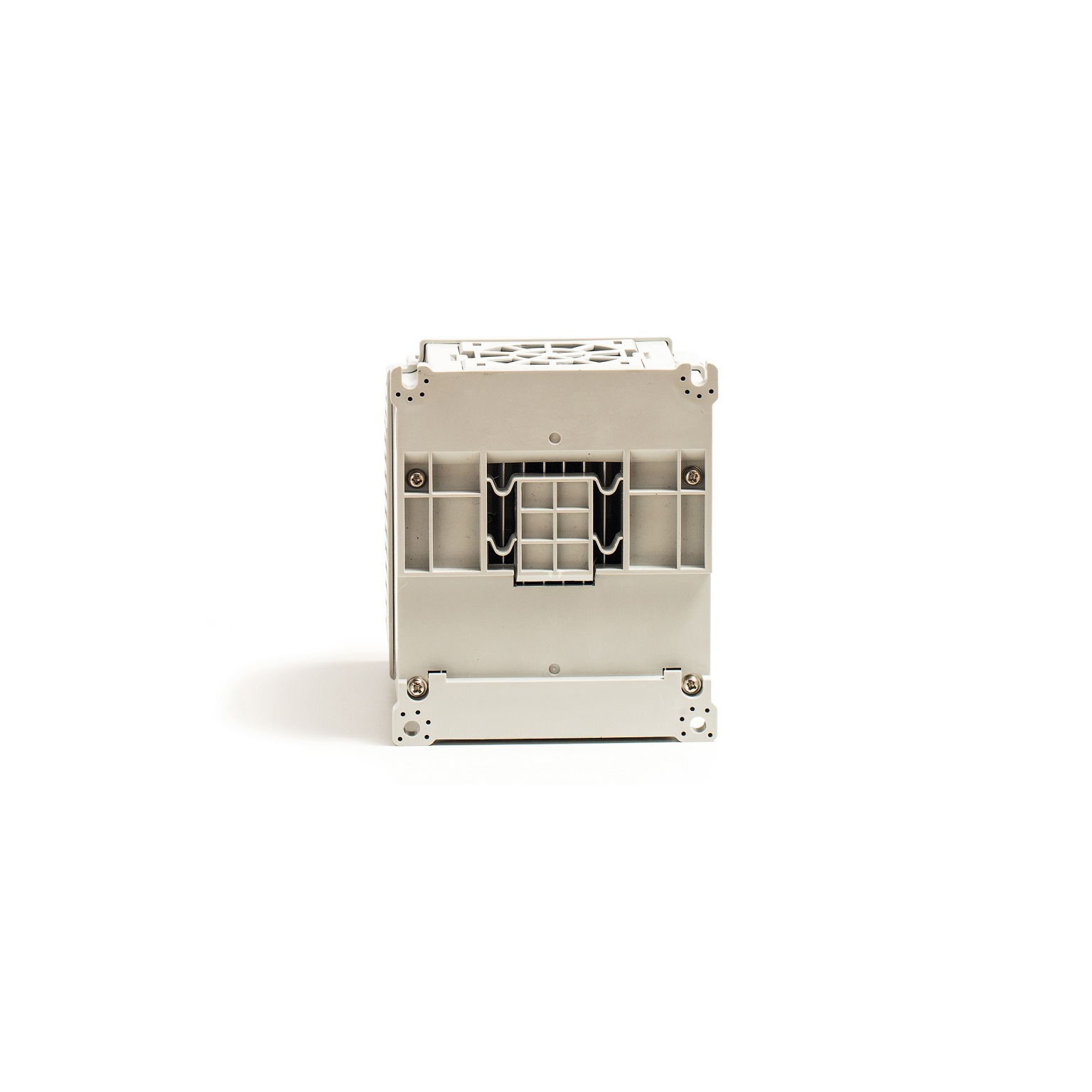

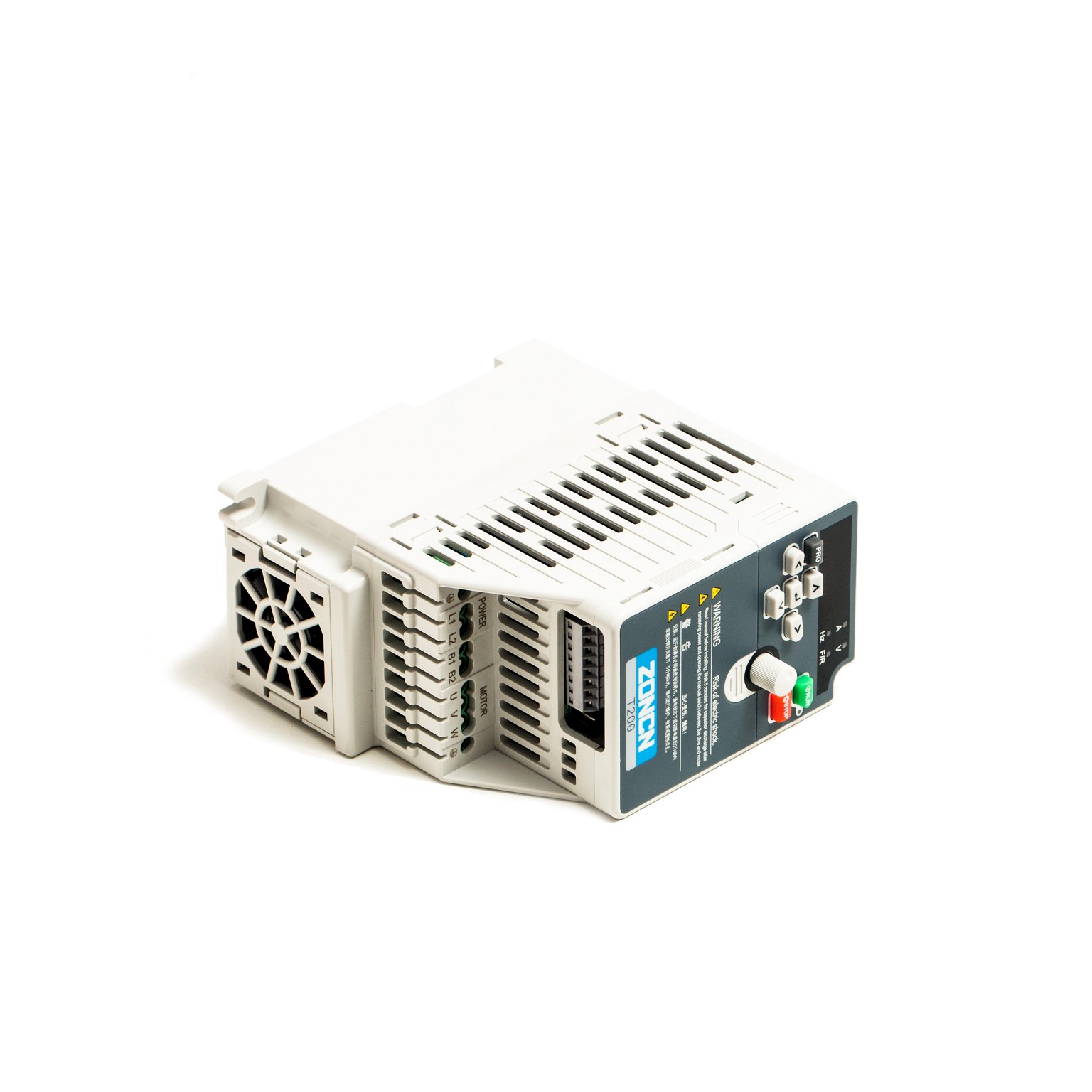

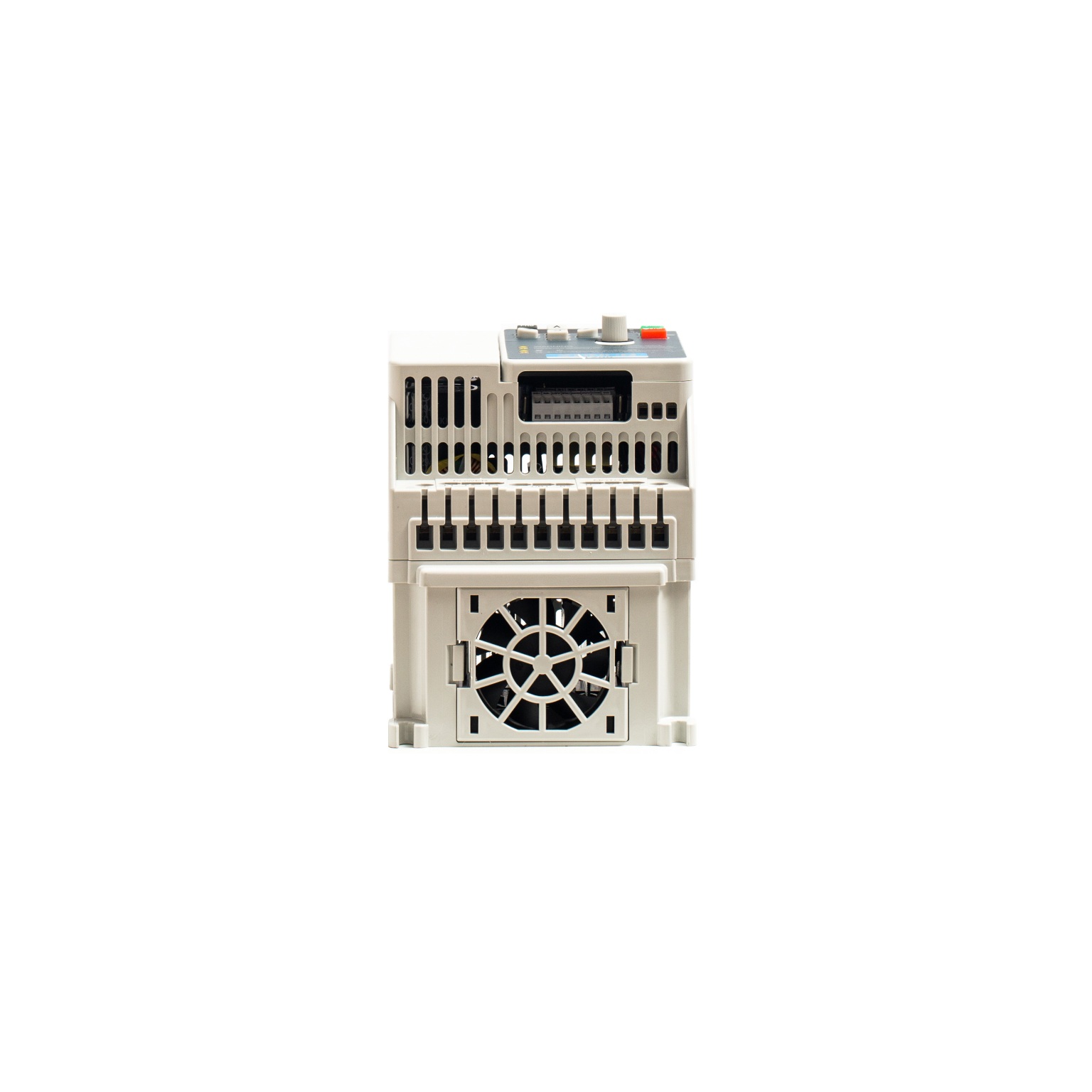

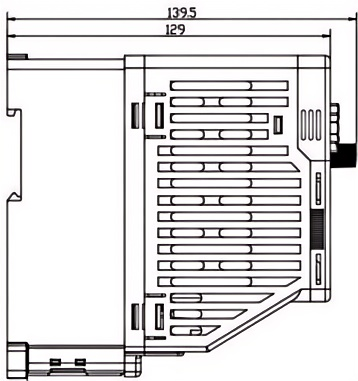

محول تردد متجهي متعدد الوظائف وعالي الأداء من سلسلة T200

Maximum frequency

Vector control:0～600Hz V/F control:0-3200Hz

Control mode

V/F control; Senseless flux vector control(SFVC); Closed loop vector control(CLVC)

Carrier frequency

0.5kHz～16kHz

The carrier frequency can be automatically adjusted based on the load feature

Input frequency resolution

Digital setting:0.01Hz

Analog setting: maximum frequency×0.025%

Startup torque

G Type:0.5Hz/150%(SFVC); PType:0.5Hz/100%

Speed range

1:100(No PG)

Speed stability accuracy

±0.5%(No PG)

Torque control accuracy

±5%(FVC)

Overload capacity

G type:60s for 150%of the rated current,3s for 180% of the rated current

P type:60s for 120%of the rated current,3s for 150% of the rated current

Torque boost

Fixed boost; Customized boost 0.1%-30.0%

V/F curve

Straight-line V/F curve; Multi-point V/F curve;

N-power    V/F     curve(1.2-power,1.4-power,1.6- power,1.8-power,square)

V/F separation

Two types: complete separation; half separation

Ramp mode

Straight-line ramp; S-curve ramp

Four groups of acceleration/deceleration time with the range of 0.00-6500.0s

DC braking

DC braking frequency:0.00 Hz to maximum frequency Braking time:0.0-100.0s

Braking action current value:0.0%-100.0%

JOG control

Jog frequency range:0.00Hz~50.00Hz.

Jog acceleration/deceleration time0.0s~6500.0s

Onboard multiple preset speeds

It implements up to 16 speeds via the simple PLC function or by input terminal state

Onboard PID

It realizes process-controlled closed loop control system easily

Auto voltage  regulation(AVR)

It can keep constant output voltage automatically when the mains voltage changes

Over-voltage/Over-current stall control

The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over-voltage/over-current.

Rapid current limit

It helps to avoid frequent over-current faults of the inverter

Torque limit and torque control

It can limit the torque automatically and prevent frequent over-current tripping during the running process

High performance

Control of asynchronous motor is implemented through the high-performance current vector control technology

Instantaneous stop doesn't stop

The load feedback energy compensates the voltage

reduction so that the AC drive can continue to run for a short time

Timing control

Timing range 0.0Min~6500.0Min

Communication methods

RS485;EtherCAT;Profibus-DP;CAN is optional

Running command channel

Given by the panel, control terminals, Serial

communication port, can be switched by many ways

Frequency source

10 kinds of frequency source, given by digital analog voltage, analog current, pulse, serial port. can be

switched by many ways

Auxiliary frequency

source

There are ten auxiliary frequency sources. It can implement fine tuning of auxiliary frequency and frequency synthesis

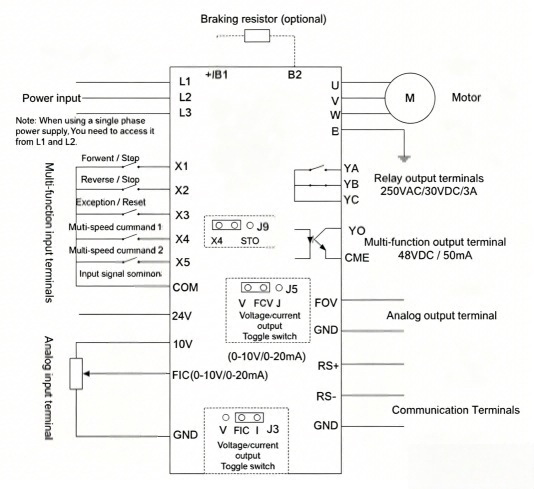

Input terminals

1 analog input terminal, supports 0-10V voltage input or 4-20 mA current input.

5 digital input terminals, one of which supports up to 100 kHz high-speed pulse input;

Output terminals

1 digital output terminal

1 relay output terminal

 1 analog output terminal :that supports 0-20mAcurrent output or0-10Vvoltage output

LED display

It displays the parameters

Key locking and  function selection

It can lock the keys partially or completely and define the function range of some keys so as to prevent mis- function.

Protection mode

Motor short-circuit detection at power-on, input output phase loss protection, over-current protection, over- voltage protection, under voltage protection, overheat protection and overload protection.
