Frequency converter 220V single-phase 1 horsepower 0.75 kilowatt VFD frequency converter

Frequency converter 220V single-phase 1 horsepower 0.75 kilowatt VFD frequency converter

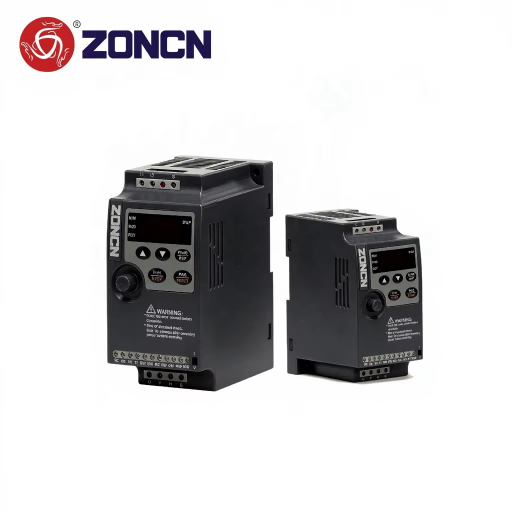

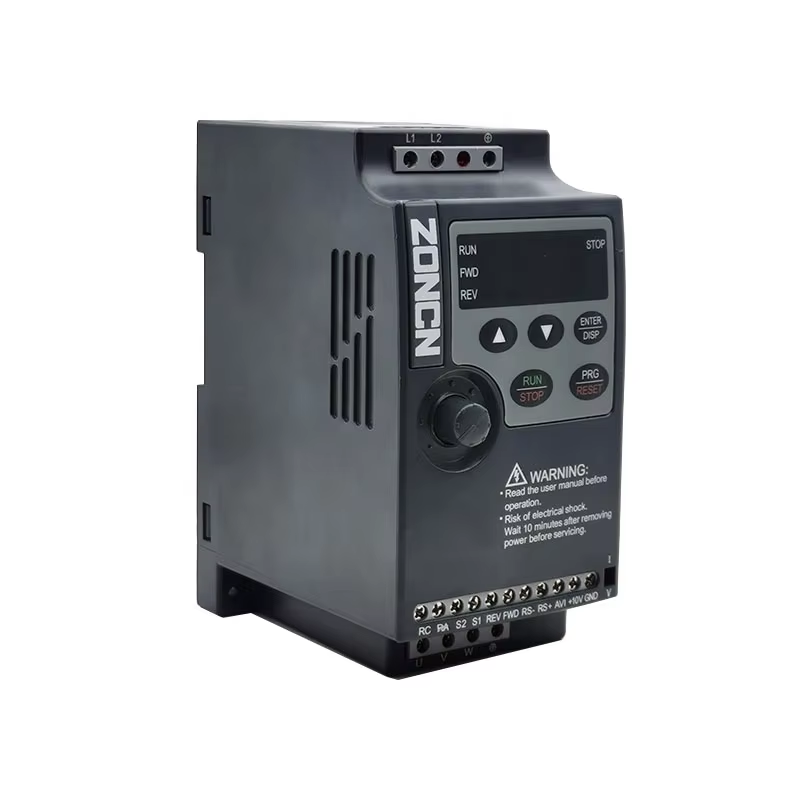

This model is a single-phase 220V input, three-phase output universal variable frequency drive (VFD/Inverter) produced by Shanghai ZONCN. It has a power of 0.75kW (1HP) and is specifically developed for the speed control of small-power three-phase asynchronous motors. By simply connecting to a household/municipal single-phase 220V power supply, it can drive three-phase motors to achieve stepless speed regulation, addressing the pain point of having only single-phase power supply in the field and being unable to use three-phase motors. It is widely applicable to scenarios such as small automation equipment, fans, water pumps, and conveying machinery, featuring stable performance, simple operation, and comprehensive protection. It is the preferred choice for small-scale transmission energy-saving renovations.

رقم الصنف :
NZ100
الطلب (الحد الأدنى للكمية) :
20
قسط :
Paypal/TT/Western Union
منشأ المنتج :
Shanghai, China
لون :
Black
مهلة :
18-30 days
وزن :
Maximum 1kg

استفسر الآن

Technical Specification
Items		NZ100
Power Supply	Rated voltage, Frequency	One-phase/Three-phase AC 220V/380V 50/60Hz
	Voltage Range	220V: 170~240V 380V: 330V~440V
Output	Voltage Range	220V: 0~220V 380V: 0~380V
	Frequency Range	0.10~400.00Hz
Control method		VF control Only ★
Indication		Operating status/Alarm definition/interactive guidance: frequency setting, the output frequency/ current, DC bus voltage and so on.
Control Speculations	Output Frequency Range	0.10Hz~400.00Hz
	Frequency Setting Resolution	Digital input: 0.10Hz, analog input: 0.1% of maximum output frequency
	Output Frequency Accuracy	0.01Hz
	V/F control	Setting V/F curve to satisfy various load requirements.
	Torque Boost	Auto increase: auto raise torque by loading Condition; Manual increase: enable to set 0.0~20.0% of raising torque.
	Multifunctional Input Terminal	Four multi-function input terminals, realizing functions including eight section speed control, Program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions
	Multifunctional Output Terminal	1 multi-function output terminals for displaying of run, zero speed, external abnormity, program operation and other information and warnings.
	Acceleration/ Deceleration Time Setting	0~999.9s acceleration/deceleration time can be set individually.
Other functions	PID Control	Built-in PID control
	RS485	Standard RS485 communication function(MODBUS)

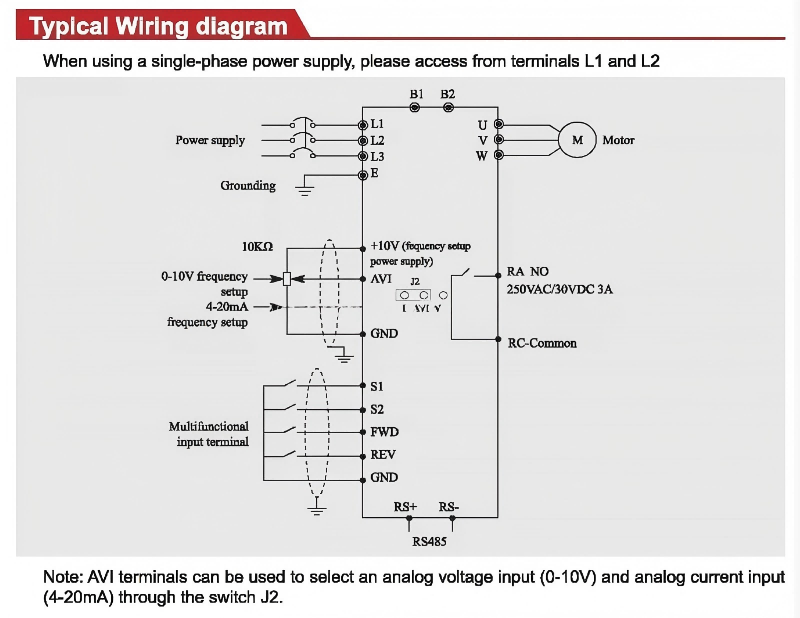

	Frequency Setting	Analog input: 0 ~ 10 V, 4~20mA Digital input: Operation panel or RS485 or UP/DOWN. Note: AVI terminals can be used to select an analog voltage input (AV) and analog current input (AI) through the switch J2.
	Multi-speed	Four multifunction input terminals, 15 section speed can be set
	Automatic Voltage Regulation	Automatic voltage regulation function can be selected
	Counter	Built-in 2 group of counters
Protection/Warning Function	Overload	150%, 60 second(Constant torque)
	Over Voltage	Over voltage protection can be set.
	Under Voltage	Under voltage protection can be set
	Other Protections	Output short circuit, over current, and parameter lock and so on.
Environment	Ambient Temperature	-10℃ to 40℃(non-freezing)
	Ambient Humidity	Max. 95% (non-condensing)
	Altitude	Lower than 1000m
	Vibration	Max.0.5G
Structure	Cooling Mode	Forced air cooling
	Protective Structure	IP20

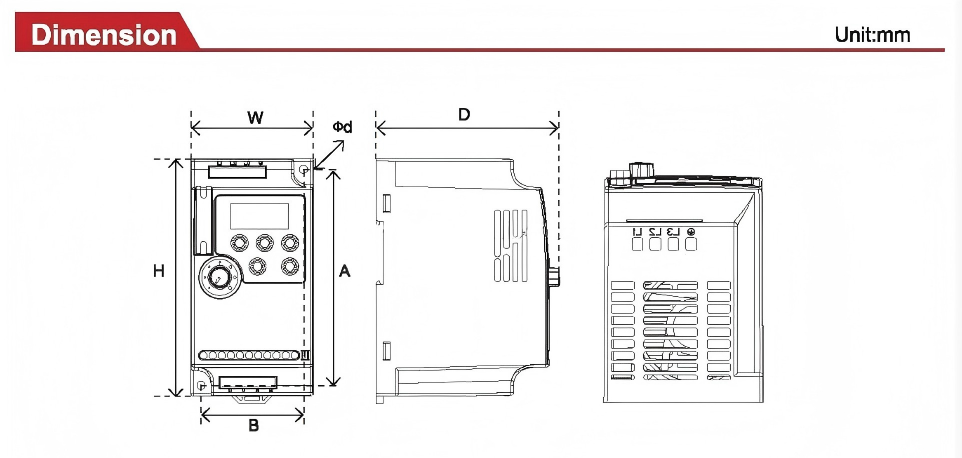

Installation		Wall-mounted or standard 35mm rail mounting (≤5.5kW)

Specification
Model	Input Current（A）	Output Power （kW）	Capacity （KVA)	Output Current (A)	Overload capacity (60s)(A)	Motor Equipped（kW)
Input Voltage（V）：1PH AC 220V±15%
NZ100-0R4G-2	5.4	0.4	1	2.5	3.75	0.4
NZ100-0R75-2	8.2	0.75	2	5	7.5	0.75
NZ100-1R5G-2	14	1.5	2.8	7	10.5	1.5
NZ100-2R2G-2	23	2.2	4.5	11	16.5	2.2
Input Voltage（V）：3PH AC 380V±15%
NZ100-0R75G-4	3.4	0.75	2.2	2.7	4.05	0.75
NZ100-1R5G-4	5	1.5	3.2	4	6	1.5
NZ100-2R2G-4	5.8	2.2	4	5	7.5	2.2
NZ100-3R7G-4	10.7	3.7	6.8	8.6	12.9	3.7
NZ100-5R5G-4	14.6	5.5	10	12.5	18.75	5.5
